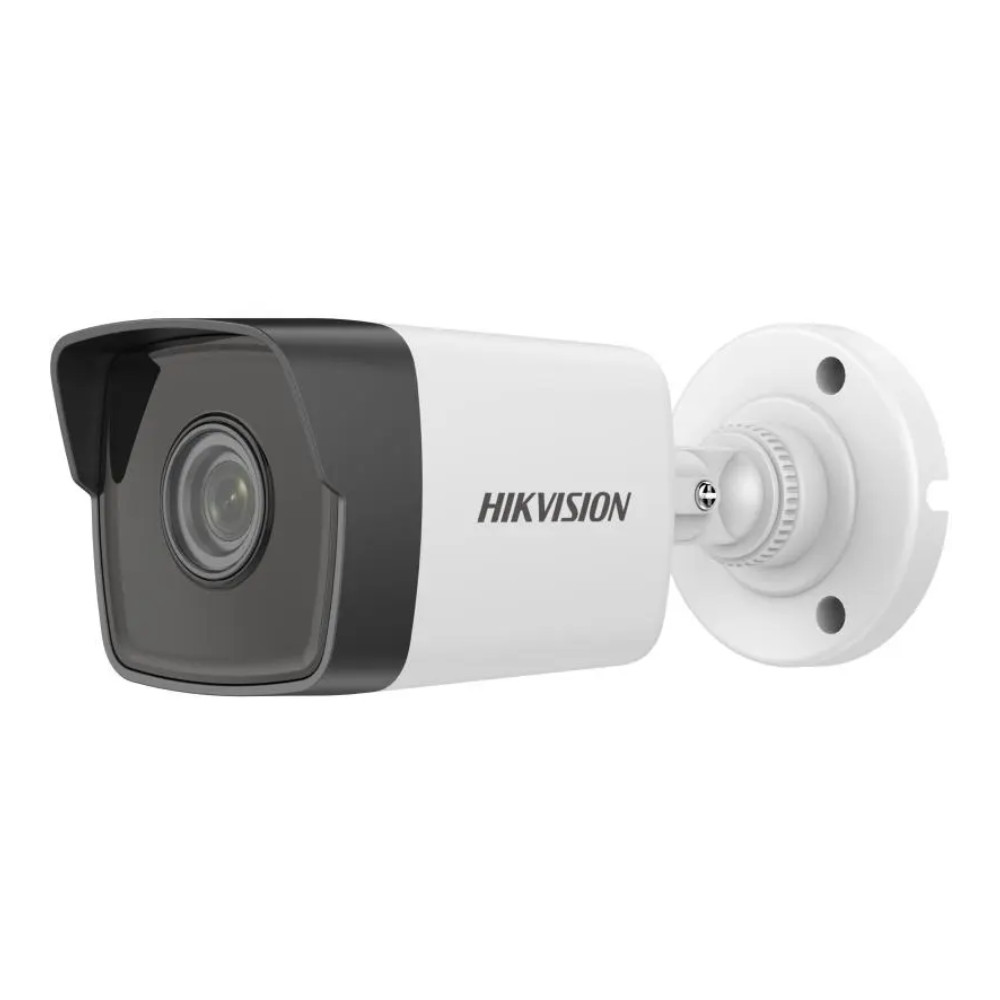

Hikvision 2 MP Fixed Bullet Network Camera, DS-2CD1021G0E-IECO

Brand Hikvision
Model Number DS-2CD1021G0E-I/ECO
Type Bullet
Connectivity Ethernet
Mega Pixel 2 MP
weight 0.49 kg
Image Sensor 1/2.7″ Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color – 0.01 Lux @(F2.0; AGC ON); B/W
Shutter Time 1/3 s to 1/100; 000 s
Day & Night IR cut filter
Angle Adjustment Pan – 0° to 360°; tilt – 0° to 180°; rotate – 0° to 360°
Focal Length & FOV 2.8 mm; horizontal FOV 112.1°; vertical FOV 60.0°; diagonal FOV 132.2°
4 mm; horizontal FOV 90.2°; vertical FOV 48.6°; diagonal FOV 107.6°
Lens Mount M12
Iris Type Fixed
Aperture F2.0
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz – 25 fps (1920 × 1080; 1280 × 720)
60 Hz – 30 fps (1920 × 1080; 1280 × 720)
Sub-Stream 50 Hz – 25 fps (640 × 480; 640 × 360)
60 Hz – 30 fps (640 × 480; 640 × 360)
Video Compression Main Stream – H.265/H.264/H.264+/H.265+
Sub-Stream – H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Region of Interest (ROI) 1 fixed region for main stream
Network Protocols TCP/IP; ICMP; HTTP; HTTPS; FTP; DHCP; DNS; DDNS; RTP; RTSP; RTCP; NTP; UPnP; SMTP; IGMP; 802.1X; QoS; IPv6; Bonjour; IPv4; UDP; SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface; ISAPI
User/Host Up to 32 users. 3 levels – administrator; operator and user
Client iVMS-4200; Hik-Connect
Web Browser Plug-in required live view – IE 10+
Plug-in free live view – Chrome 57.0+; Firefox 52.0+
Local service – Chrome 57.0+; Firefox 52.0+
Image Settings Saturation; brightness; contrast; sharpness; AGC; white balance adjustable by client software or web browser.
Day/Night Switch Day; Night; Auto; Schedule
Wide Dynamic Range (WDR) Digital WDR
SNR ≥ 52 dB
Image Enhancement BLC; 3D DNR
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Basic Event Motion detection; video tampering alarm; exception
Linkage Upload to FTP; notify surveillance center; send email
Power 12 VDC ± 25%; 0.4 A; max. 5 W; Ø5.5 mm coaxial power plug
PoE – 802.3af; Class 3; 36 V to 57 V; 0.2 A to 0.15 A; max. 6.5 W
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity – 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity – 95% or less (non-condensing)
Language English; Ukrainian
General Function Anti-flicker; heartbeat; mirror; password protection; privacy mask; watermark; IP address filter
Protection IP67 (IEC 60529-2013)
Package Dimension (W, H, L ) in cm 12.1 x 11.8 x 21.6
Warranty 1 Year Warranty
SKU SS021349
